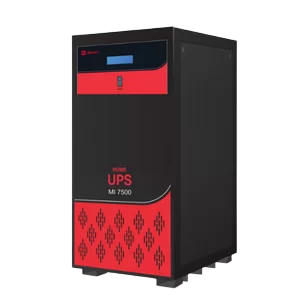

Mercury 7.5kVA/120V MH-7500 Pure Sine Wave Inverter with Digital Display

1,000,000.00

Mercury 7.5KVA Inverter 120v Pure Sine Wave MI 7500

The Mercury 7.5KVA inverter 120v Pure Sine Wave with UPS functionality is a generation ahead of the entire category. That’s because our break through chip embedded sine wave’ technology delivers the same current as you get from your mains.  The distinguishing features of this Mercury 7.5KVA inverter Pure Sine Wave are:

  • DSP technology for fast & smooth charging
  • Auto Sense intelligent charging (ASIC) adjustment
  • Highly robust & reliable ideal for computers
  • User selectable charging current
  • Wide charging voltage range
  • Low battery Warning
  • Overload warning
  • Main fuse blown protection
  • Short circuit protection

Technical Specification

  • Voltage Range 180 VAC – 265VAC ± 5 VAC (UPS Mode)
  • 100 VAC – 280 VAC ± 15 VAC (NOR Mode)
  • Line Low Detection 180V ± 5V (UPS Mode) / 100V ± 15V (NOR Mode)
  • Line Low Comeback 190V ± 5V (UPS Mode) / 110V ± 10V (NOR Mode)
  • Line High Detection 265V ± 5V (UPS Mode) / 280V ± 15V (NOR Mode)
  • Line High Comeback 255V ± 5V (UPS Mode) / 270V ± 10V (NOR Mode)
  • Frequency Transfer Input Frequency 45-55 Hz

Characterstics (AC)

  • Inverter Full Load Power 6000 W
  • Power Factor 0.8 factor (on resistive load)
  • On-Line Mode Sine Wave
  • Battery Mode Sine Wave
  • On-Line Output Voltage Follow the Line Voltage
  • Battery Mode Output Voltage 200 VAC ± 10%
  • Transfer Time (No-Load) <15 ms
  • Frequency at Battery Mode 50 Hz ± 1 Hz

Characterstics (DC)

  • DC Supply Voltage 120V
  • Battery Floating Charge Voltage 135.0 VDC ± 2.0 VDC
  • Charge Current <15 A
  • Battery Voltage Low Alarm 106.0 VDC ± 2.0 VDC
  • Battery Discharge Protection 104.0 VDC ± 2.0 VDC
  • Over Charge Protection > 150.0 VDC ± 2.0 VDC
