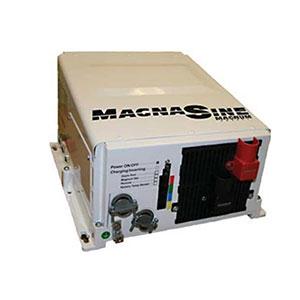

The MS-PE Series Inverter/Charger from Sensata Technologies is a 230 VAC / 50 Hz, pure sine wave inverter designed specifically for the most demanding renewable energy applications. The MS-PE Series is powerful, easy-to-use, and best of all, cost effective. Parallel stacking: You can parallel up to four inverter/chargers for up to 17.2kw of power at 230V. The ME-ARTR Router is required for parallel stacking the MS-PE Series. Power Factor Corrected (PFC) Charger: Our PFC charger is built into all of our inverter chargers. It uses less energy from a generator than a standard charger – using 25-30% less AC current than standard chargers. Safe and reliable: The MS-PE Series is listed to the stringent requirements of CE for renewable energy installations.

Output Power 4,100W
Peak Watts 6,300W
Warranty Two years
Output Voltage 230 VAC
Output Current 17.8 amps
Output Waveform Pure Sine
Output Frequency 50 Hz
Input Voltage 24
Operating Temp -20° C to +60° C (-4° F to 140° F)
Efficiency 90%
Weight 25.0 kg (55 lb)
Dimensions 34.9 cm x 32.1 cm x 20.3 cm (13.75” x 12.65” x 8.0”)
UL Certified No
Phase Single
Topology Low Frequency
Input Battery Voltage Range 18 – 34 VDC
