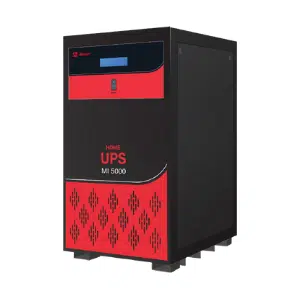

MERCURY 5KVA INVERTER PURE SINE WAVE MODEL M5000
The Mercury 5KVA Inverter Pure Sine Wave with UPS functionality is a generation ahead of the entire category. That’s because our break through chip embedded sine wave’ technology delivers the same current as you get from your mains. The distinguishing features of this Mercury 5KVA inverter Pure Sine Wave are:
- DSP technology for fast & smooth charging
- Auto Sense intelligent charging (ASIC) adjustment
- Highly robust & reliable ideal for computers
- User selectable charging current
- Wide charging voltage range
- Low battery Warning
- Overload warning
- Main fuse blown protection
- Short circuit protection
Specification
Voltage Range 180 VAC – 265VAC ± 5 VAC (UPS Mode)
100 VAC – 280 VAC ± 15 VAC (NOR Mode)
Line Low Detection 180V ± 5V (UPS Mode) / 100V ± 15V (NOR Mode)
Line Low Comeback 190V ± 5V (UPS Mode) / 110V ± 10V (NOR Mode)
Line High Detection 265V ± 5V (UPS Mode) / 280V ± 15V (NOR Mode)
Line High Comeback 255V ± 5V (UPS Mode) / 270V ± 10V (NOR Mode)
Frequency Transfer Input Frequency 45-55 Hz
Characterstics (AC)
Inverter Full Load Power 4000
Power Factor 0.8 factor (on resistive load)
On-Line Mode Sine Wave
Battery Mode Sine Wave
On-Line Output voltage Follow the Line Voltage
Battery Mode Output Voltage 200 VAC ± 10%
Transfer Time (No-Load) <15 ms
Frequency at Battery Mode 50 Hz ± 1 Hz
Characterstics (DC)
DC Supply Voltage 48V
Battery Floating Charge Voltage 54.0 VDC ± 0.8 VDC
Charge Current <15 A
Battery Voltage Low Alarm 42.4 VDC ± 0.8 VDC
Battery Discharge Protection 41.6 VDC ± 0.4 VDC
Over Charge Protection > 60.0 VDC ± 0.8 VDC
