Model | XTRA1206N | XTRA2206N | XTRA1210N | XTRA2210N | XTRA3210N | XTRA4210N | XTRA3215N | XTRA4215N | XTRA3415N | XTRA4415N |
Nominal system voltage | 12/24VDC/Auto | 12/24VDC/Auto | 12/24VDC/Auto | 12/24VDC/Auto | 12/24VDC/Auto | 12/24VDC/Auto | 12/24VDC/Auto | 12/24VDC/Auto | 12/24/36/48VDC/Auto | 12/24/36/48VDC/Auto |
Battery type | Lead-acid (Sealed/Gel/Flooded)/Lithium (LiFePO4/Li(NiCoMn)O2)/User | |||||||||
Battery input voltage range | 8~32V | 8~32V | 8~32V | 8~32V | 8~32V | 8~32V | 8~32V | 8~32V | 8~68V | 8~68V |
Rated charge current | 10A | 20A | 10A | 20A | 30A | 40A | 30A | 40A | 30A | 40A |
Rated discharge current | 10A | 20A | 10A | 20A | 30A | 40A | 30A | 40A | 30A | 40A |
Rated charge power | 130W/12V 260W/24V |
260W/12V 520W/24V |
130W/12V 260W/24V |
260W/12V 520W/24V |
390W/12V 780W/24V |
520W/12V 1040W/24V |
390W/12V 780W/24V |
520W/12V 1040W/24V |
390W/12V 780W/24V 1170W/36 1560W/48V |
520W/12V 1040W/24V 1560W/36V 2080W/48V |
Max. conversion efficiency | 97.90% | 98.30% | 98.20% | 98.30% | 98.60% | 98.60% | 97.60% | 97.90% | 98.10% | 98.50% |
Tracking efficiency | ≥99.5% | |||||||||
Max. PV open circuit voltage | 60V(At minimum operating environment temperature) 46V(At 25℃ environment temperature ) |
100V(At minimum operating environment temperature); 92V(At 25℃ environment temperature) |
150V(At minimum operating environment temperature); 138V(At 25℃ environment temperature) |
|||||||
MPPT voltage range | (Battery voltage +2V)~36V | (Battery voltage +2V)~36V | (Battery voltage +2V)~72V | (Battery voltage +2V)~72V | (Battery voltage +2V)~72V | (Battery voltage +2V)~72V | (Battery voltage +2V)~108V | (Battery voltage +2V)~108V | (Battery voltage +2V)~108V | (Battery voltage +2V)~108V |
Equalization voltage | Sealed:14.6V,Flooded:14.8V,User-defined:9-17V | |||||||||
Boost voltage | Gel:14.2V,Sealed:14.4V,Flooded:14.6V,User-defined:9-17V | |||||||||
Float voltage | Gel/Sealed/Flooded:13.8V,User-defined:9-17V | |||||||||
Low voltage reconnect voltage | Gel/Sealed/Flooded:12.6V,User-defined:9-17V | |||||||||
Low voltage disconnect voltage | Gel/Sealed/Flooded:11.1V,User-defined:9-17V | |||||||||
Self-consumption |
≤14mA(12V) ≤15mA(24V) |
≤14mA(12V)
|
≤30mA(12V)
|
≤30mA(12V)
|
≤30mA(12V)
|
≤30mA(12V)
|
≤30mA(12V)
|
≤30mA(12V)
|
≤30mA(12V) ≤16mA(24V) ≤13mA(36V) ≤13mA(48V) |
≤30mA(12V) ≤16mA(24V) ≤13mA(36V) ≤13mA(48V) |
Temperature compensation( for lead-acid battery) | -3mV/℃/2V (Default) | |||||||||
Relative humidity | ≤95%, N.C | |||||||||
Enclosure | IP33 | |||||||||
Communication interface | RS485(RJ45) | |||||||||
Grounding | Common negative | |||||||||
Operating temperature range | -25℃~+50℃(LCD); -30℃~+50℃(No LCD) | -25℃~+45℃(LCD);-30℃~+45℃(No LCD) | ||||||||
Dimensions(LxWxH)(mm) | 175×143×48 | 217×158×56.5 | 175×143×48 | 217×158×56.5 | 230×165×63 | 255×185×67.8 | 255×185×67.8 | 255×187×75.7 | 255×187×75.7 | 255×189×83.2 |
Net weight | 0.57kg | 0.96kg | 0.57kg | 0.96kg | 1.31kg | 1.70kg | 1.70kg | 2.07kg | 2.07kg | 2.47kg |
1. The controller can’t automatically identify system voltage if lithium batteries were connected. | ||||||||||
2. The voltage point is for 12V system, please *2 in 24V system, *3 in 36V system, *4 in 48V system. |
Related products
Sale!

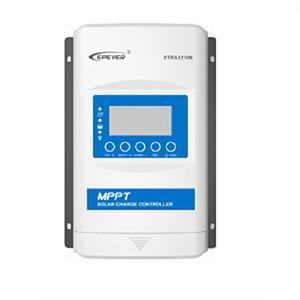

Epever 30a XTRA MPPT controller
